Sumångan Ehekutibu: Sa' i sisteman prupulsion elektrisidåt ha nisisita i takhilo' na dinidåt torque, i frekuensian operasion ni' takhilo' (>1,000 Hz), yan i estriktu na dissipasion i temperatura, i tradisiunåt na laminasion stator ni' sigi ha' i ring-ña ha na'fanlamen i fisikåt yan i ekonomiku na fronteras. Este na whitepaper ha ebaluyi taimanu i segmented stator architecture—ma'integra yan sub-micron progressive stamping yan zero-stress Backlack self-bonding technology—ha na'suha i limitåsion i winding slot, ha na'menos i high-frequency core loss, yan ha na'menos i silicon steel waste para i Tier-1 OEMs gi enteru mundo.1. I Bottleneck gi i Fisika put i Continuous-Ring Stators gi i High-Frequency Applications
Gi i konbensionåt na DC (BLDC), permanent magnet synchronous motors (PMSM), yan traction motors, i continuous-ring stator na disision ha na'fanhuyong i aguila siha ni' manma'a'agang para u fanma'a'agang gi i dikike' na lugåt siha. Este ha na'fanhuyong tres na kritikat na limitasion gi i inetnon:
I Lina'la' i Slot Fill (I2R Copper Loss Spike)
I ma'a'atan na aguila gi i ma'a'atan pat semi-ma'a'atan na lugåt siha ha na'fandaña' i slot fill factor asta 55%–65%. I ma'a'atan na kantidån konduktot ha na'kahulo' i resistensian i fase, ya ha na'fanla'la' i copper losses (I2R) yan i mas takhilo' na inina gi i peak current.
End-Turn Overhang & Over-Weighting
I ma'usa i kannai pat i aguila gi i stators ni' sigi ha' ha na'fanhuyong takhilo', ti ma'usa na copper end-turns, ya ha na'fanhuyong i peson-ña sin u na'fanhuyong i torque.
Ti Efisiensian i Gastos i Materiåt Påtten
I ma'a'atan i full-circle stator rings ginen i electrical steel coils ha na'fanhuyong meggai na inner-bore yan slot scrap, ya ha na'fanhuyong i materiåt siha ni' ma'usa gi 45%–55%.

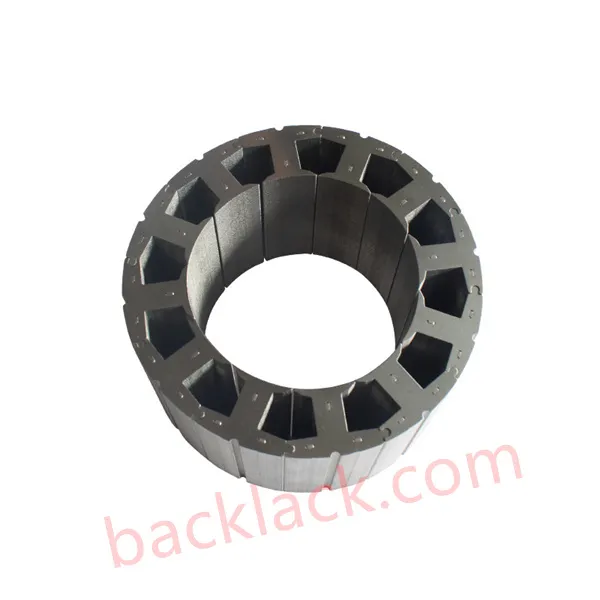

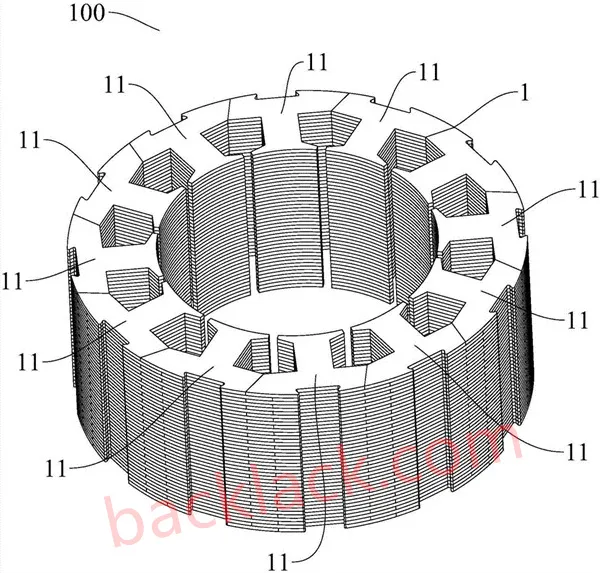

2. Inadelanta gi i Arkitektura: Manma'a'ñao na Manma'a'ñao yan Modular na Topologia siha

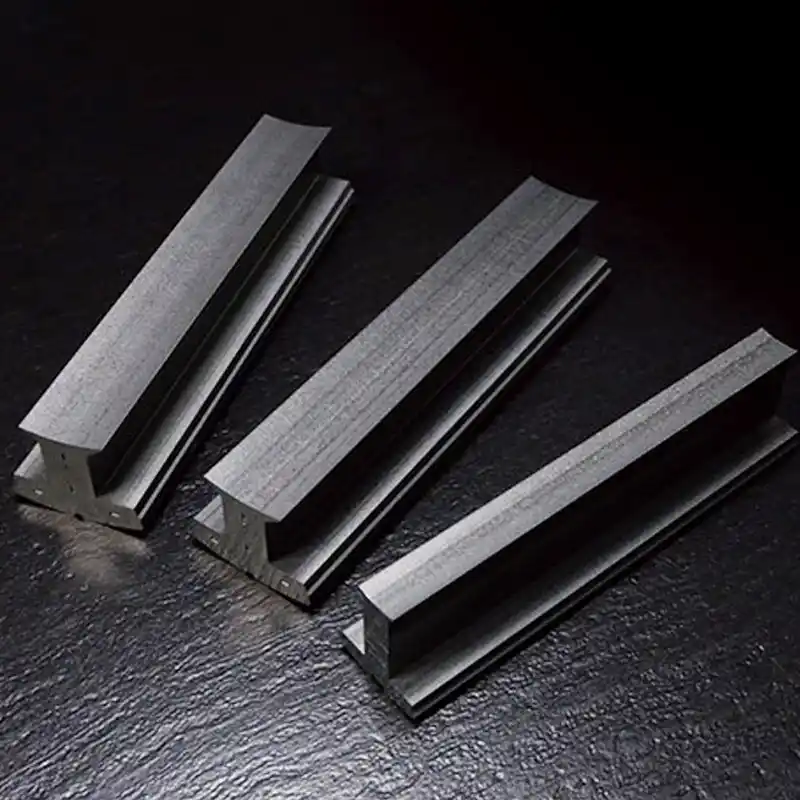

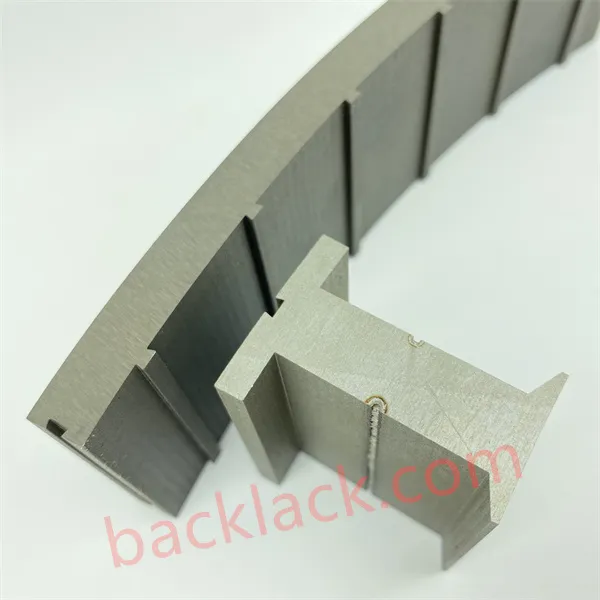

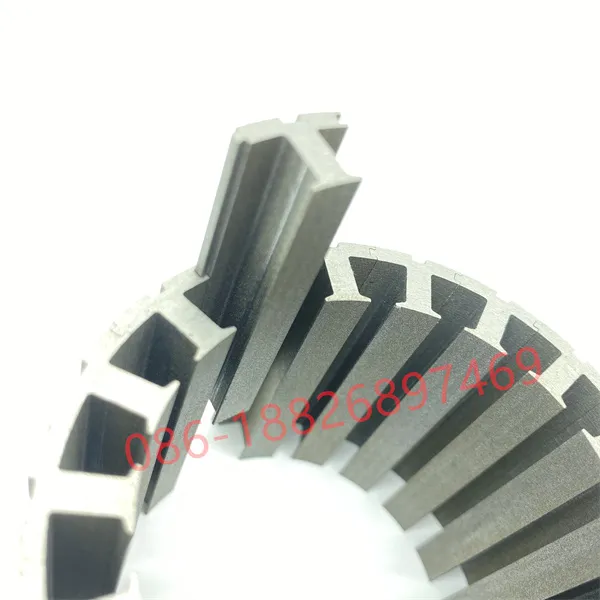

I ma dibidi i stator gi kada T-shaped na dinten laminasion siha ha na'fanma'a'ñao i motor ginen un puzzle ni' ma'a'atan gi halom asta un proseson fina'tinas gi sanhiyong ni' ti ma'a'atan.

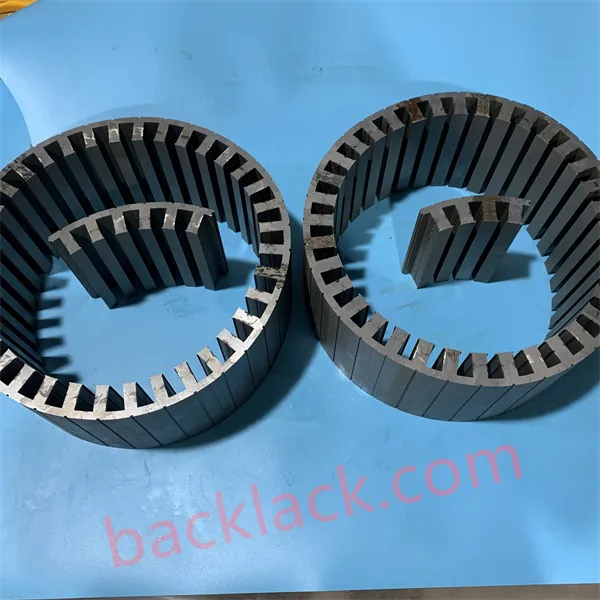

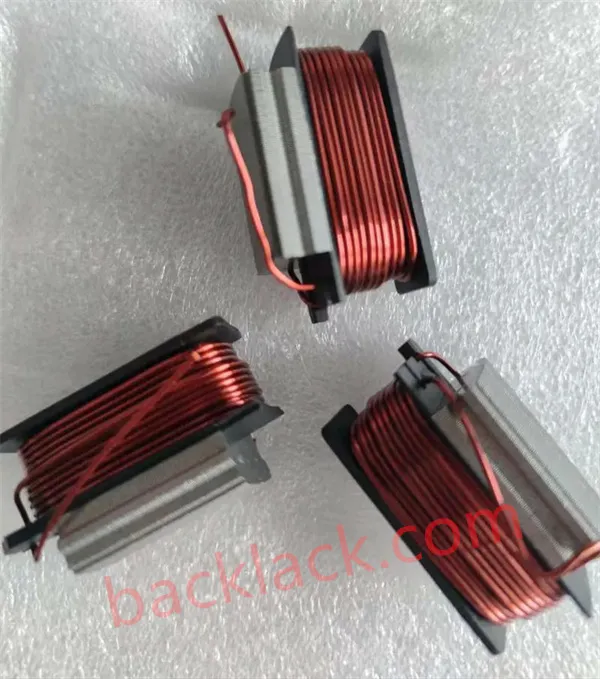

A. Direct Tooth Winding (Concentrated Winding)
Yanggen ma na'huyong kada na påtten i dinten-ñiha, i CNC na flier siha ni' manma'a'a'ñao ma cho'gue i che'cho'-ñiha gi sanhiyong sin i siña maayek na lugåt. Este ha na'siña:

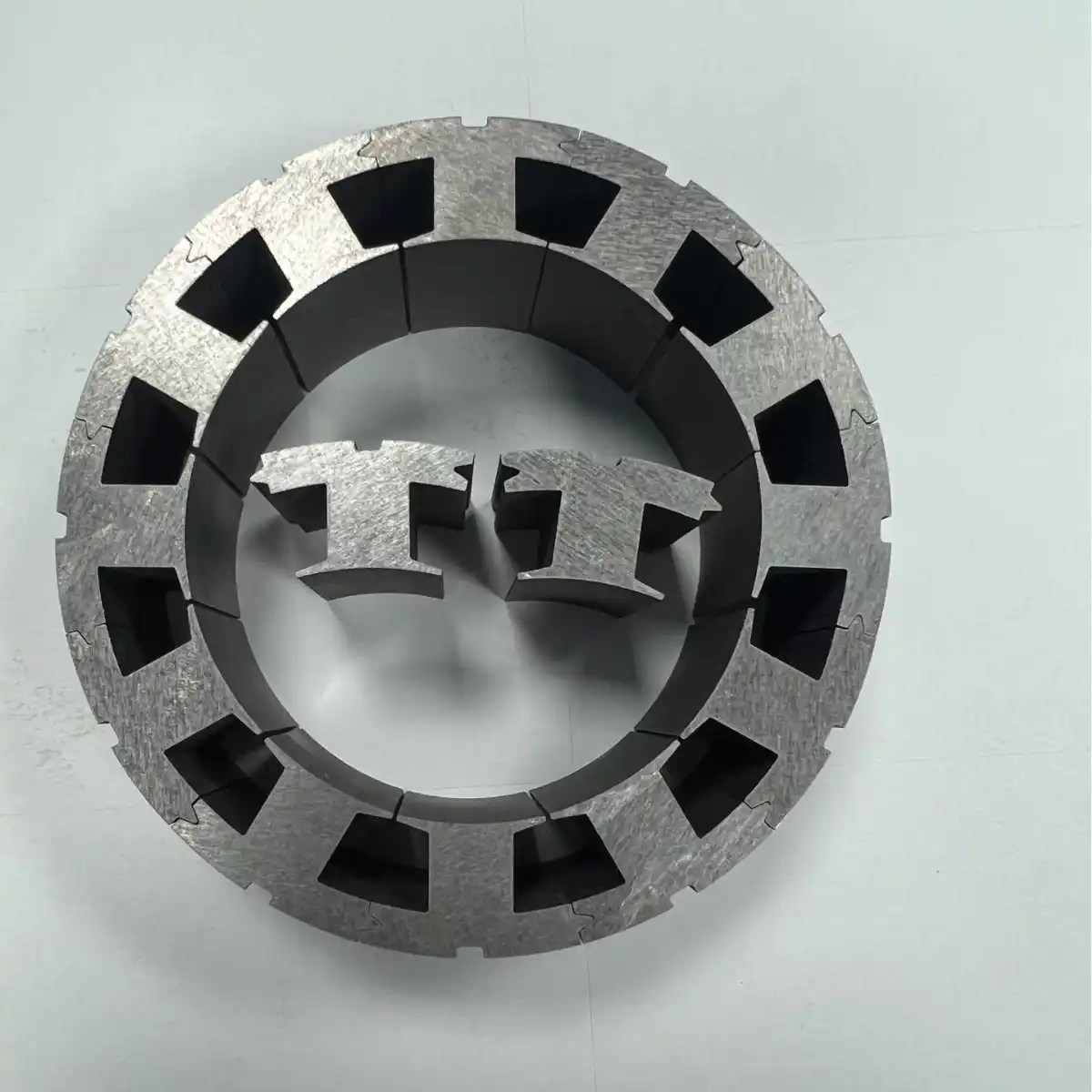

- Na'dokko' i slot fill factor ginen 60% asta 78%–82%+ ni' ma'usa i precision linear winding pat rectangular flat wire.
- Ma na'menos i lina'la' i alambre gi i uttemo, ma na'menos i masan kobre asta 18%, yan ma na'menos i resistensian i fase.
- Ha na'lå'la' i papet insulasiun sa' taya' abrasion mekaniku gi i tiempon i bobbin/tooth winding gi sanhiyong.
B. Inadelanta i Matiriåt siha para i Manå'paka' na Grådon Asero siha
Para i high-frequency na motor siha ni' nisisåriu 0.1mm asta 0.2mm na ultrathin electrical steel laminations pat Cobalt-Iron (CoFe) soft magnetic alloys, i råsan materiåt ha na'guaha mas ki 65% gi i todu na gaston stack. I modular tooth nesting gi i progressive dies ha na'menos i punching scrap, ya ha na'dokko' i uson i silicon steel na materiåt asta 85%–90% yan ha na'maolek i gaston BOM.
3. Na'siguru na i Parasitic Air Gap yan i Stress Issues gi i Backlack Self-Bonding
Gi i tiempon antigu, i manma'gås-ñiha i motor ma'ebita i segmented stators put dos na risgu: parasitic air gaps gi i segment joint interfaces yan i core loss spikes ni' ma na'fanhuyong ni' laser welding pat interlocking rivets.

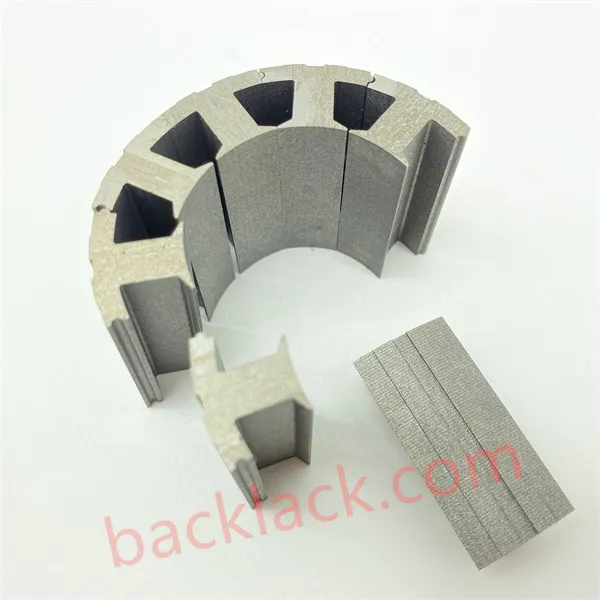

I Youyou Company ha na'fanhuyong este na difirensia siha put i inetnon i sub-micron carbide na åmot yan i Backlack (Self-Bonding Coating) Technology.
| I mas impottånte na metrika put inhenyero | Stator ni' Un Pidason Estao | Ma'gåsi (Laser Welded / Riveted) | Youyou Company Backlack Segmented Stator |
|---|---|---|---|
| Toleransia yan Difirensiå-ña | N/A (Sigundo na Aniyu) | 0.015 mm - 0.030 mm (Takhilo' na Ti Malago') | ≤ ±0.008 mm (Ti Ma'å'ñao) |
| Interlaminar Short Circuit | Bahu (Punching Stress Ha') | Takhilo' (I siñat siha ni' ma'usa para u ma'gåsi) | Zero (Pure Epoxide Insulation Barrier) |
| I Takhilo' na Frekuensiha na Pineddong (W/kg) | Referensian Baseline | +20% asta +35% na inañadi gi i pineddong | -12% na Rinidusan Pineddong kontra i Manma'gåsi na Pila siha |
| I Mina'gåsen i Estruktura | Tatkilo | Konsensian Estres ni' Ma'ayek | > 20 MPa na Inafekta gi Todu i Tåno' |
| I Inagang / NVH na Inafekta | Manadaidei | Ti maolek (Ti maolek i lina'la' i segmento) | Superior (Polymer Matrix Damps Harmonics) |
Inadelanta gi i Teknolohiha: Taimanu na Ha Na'fanhuyong i Backlack i Joint Short Circuits

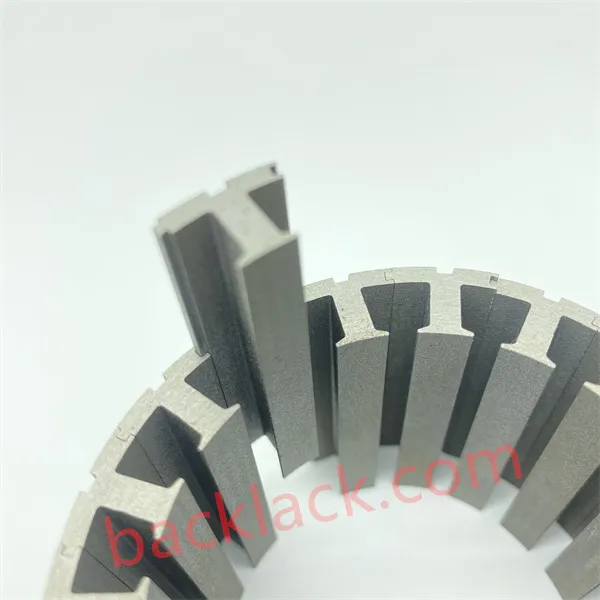

I tradisiunåt na laser welding gi i kanton i laminasion ha na'fanhuyong puente siha ni' konduktibu ni' ha na'fanhuyong i sheet-to-sheet insulation, ya ha na'fanhuyong i mas takhilo' na eddy current loops gi i takhilo' na frekuensiha (>400 Hz). I pre-coated B-stage epoxy silicon steel-ta ma estampa, ma asemble, yan ma na'homlo' gi papa' i presison na siklon thermal-compression. I polymer ni' ma'a'atan ha', ha pega 100% gi i area gi i lamination sin u na'halom i estres mekaniku, ya ha na'siguru na i pristine hysteresis loop i raw material.
4. Presision na Manmafa'tinas yan i Prutoklon Kualidåt
Para u ma na'i i manma'gås-ta ni' manma'gås-ta gi i aerospace, automotive, yan mediku, i Youyou Company ha na'guaha un end-to-end na kualidåt na framework:
5. DFM Prototyping & Mass Production Capabilities para i Global OEMs
Komu un IATF 16949 na kompanihan motor core, i Youyou Company ha na'i i Design for Manufacturability (DFM) na inayuda para i manma'gås-ñiha gi i enteru mundo:

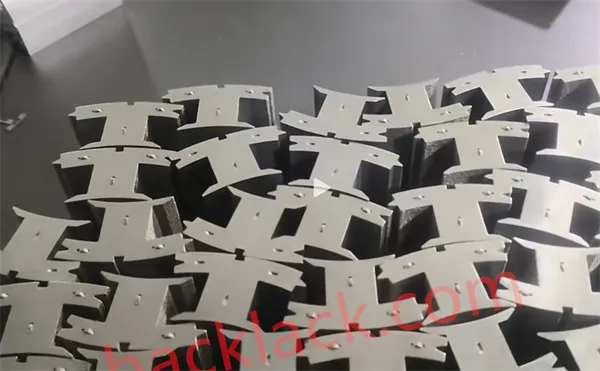

- Rapid Prototyping (7–10 Days Business): Wire-EDM / High-precision laser cutting kombinidu yan custom curing fixtures para rápido na testing antes di u ma'ayek i tooling.
- Produksion ni' siña ma'adelanta: I manma'gås-ta ni' manma'gås-ta (100T–300T) manma'gås-ta ni' manma'gås-ta ni' manma'gås-ta gi kada sakkan yan i CMM yan Epstein frame testing traceability.
- I Inadahin i Chain Siha gi i Mundo: RoHS, REACH, yan ISO 9001 ni' manma'ayek para u ma'ayek i matiriåt (Epstein core loss curves, tensile test data, yan i coating thickness reports).

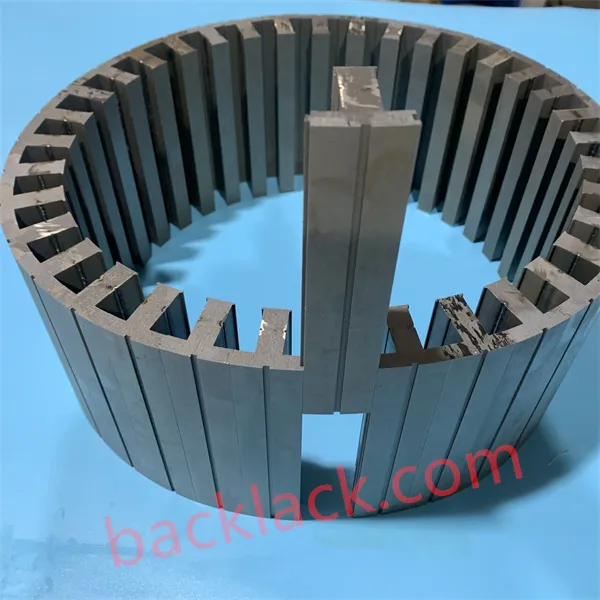

Na'maolek i Motor ni' Takhilo' na Frekuensia yan i Arkitekturan Stator ni' Backlack Segmented

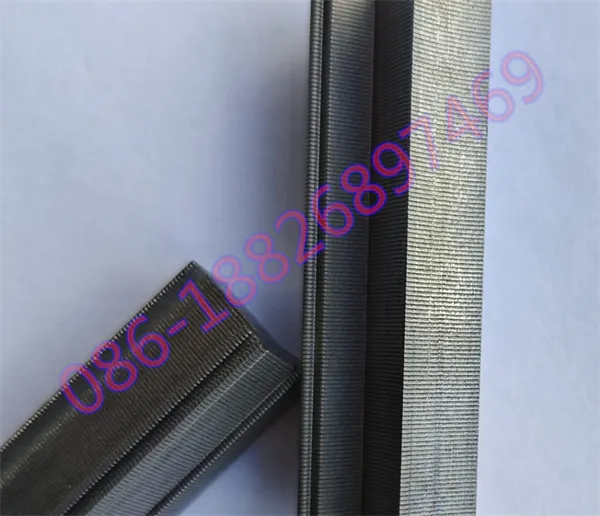

Na'i i 3D CAD na mudelu siha pat dibuho siha para un komprendiyon na Segmented Tooth DFM Feasibility Assessment, Backlack thermal-bonding analysis, pat rapid prototyping (7–10 dihas na tiempon inatan).

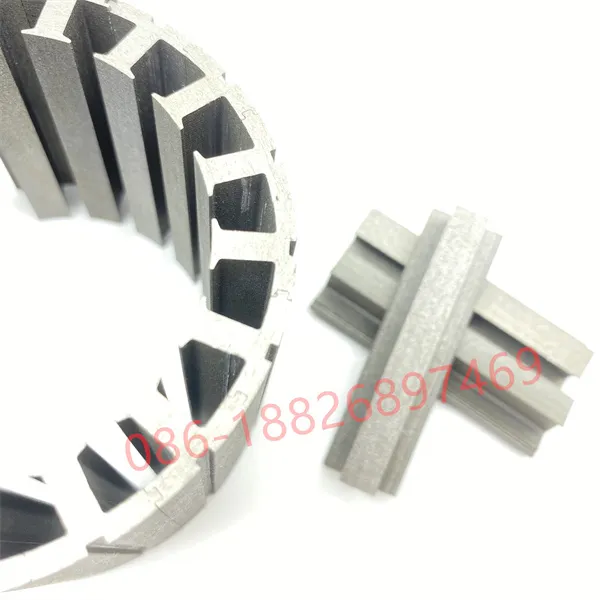

Kontrolon Kualidåt para i Segmented Stator Cores yan Backlack Laminations
Komu un espesiåt na fabrikanten laminasion motor ni' presision, i Youyou Company ha na'siguru na guaha kualidåt i Segmented Stator Architectures yan Backlack Self-Bonding Stacks. Gi i ma'a'agang sub-micron progressive stamping (0.1mm–0.2mm ultrathin silicon steel), zero-stress thermal-compression bonding, yan sub-micron joint clearance testing, manma'a'agang high-slot-fill, ultra-low loss stator segments ni' ma'inhinyero para high-frequency electric propulsion, aerospace actuators, yan high-pm motors.
Verifikasion i Raw Material yan i Integridat i Coating: 100% na verifikasion i settipikan materiåt yan i siña ma'ayek i lote gi i high-grade electrical steels (0.1mm–0.2mm ultrathin silicon steel yan soft magnetic alloys). In inspekta i uniformidåt i gauge, i resistensian i insulation coating, yan i B-H loss curves antes di i progressive stamping.

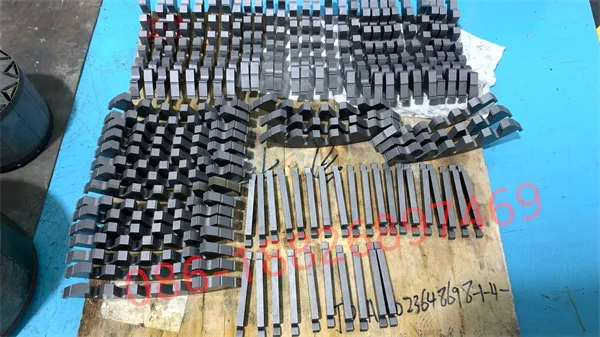

Sub-Micron Punching & Micro-Burr Height Control: I custom carbide progressive dies ha na'siguru na i segment tooth pitch tolerances gi halom ±0.005 mm. I estriktu na micro-burr control (<0.005 mm) ha prebeniyi i interlaminar short circuits yan ha na'siguru na u ma'a'atan i kada na påtten i pachot.
Backlack Thermal Bonding & Zero Mechanical Stress: I prugråman inatan ni' makontrola i temperatura yan i presion ha na'fanhuyong i nisisidåt para i rivet interlocking pat edge welding. Este na epoxide bonding ni' gaige gi i sanhilo' ha na'fanlå'la' i orihinat na permeabilidåt magnet, ha na'fanhuyong i eddy currents ni' ginen i weld, yan ha na'fanmetgot i shear strength (>20 MPa).

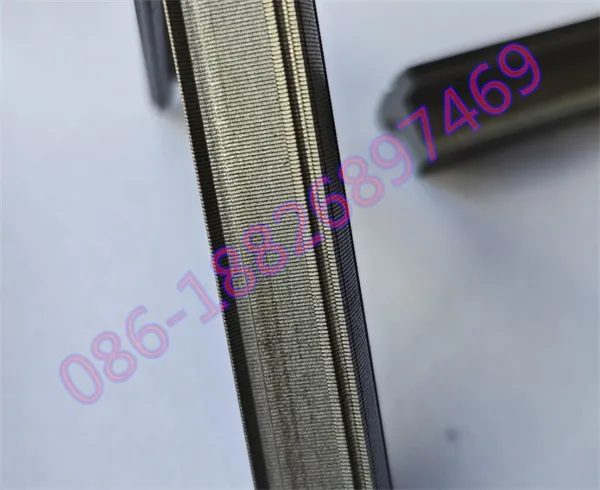

Metrology gi i Joint Gap & Stator Core Testing: I makinan midision optical coordinate (CMM) ha na'siguru na i joint interface gaps gaige gi papa' 0.008 mm, ya ha na'menos i parasitic magnetic reluctance. 100% core loss (W/kg) na prublema ha na'siguru na ma kumpli i OEM na espesifikåsion high-frequency efficiency.
FAQS
I tiningo' put i Segmented Stator Architectures, i Backlack self-bonding na teknolohiha, i ultrathin silicon steel laminations (0.1mm–0.2mm), i direct tooth winding, yan i high-frequency core loss reduction.
Hafa i mas impottånte na bentaha siha put i Segmented Stators ki i continuous-ring stators?
I arkitekturan stator ni' ma'segmente ha na'fanhuyong i difirensia gi i lugåt ni' ma'a'atan i diente siha ni' ma'a'atan gi sanhiyong. Este ha na'dokko' i slot fill factor ginen ~60% asta 78%–82%+, ya ha na'menos i resistensian copper (I2R loss). Kontodu, i segmented nesting gi i electrical steel coils ha na'dokko' i uson i raw material asta 85%–90% (kompara yan ~50% para i tradisiunåt na one-piece ring stators).
Sa' hafa na i Backlack (Self-Bonding Coating) kritikat para i segmented stator tooth stacks?
I tradisiunåt na laser welding pat i interlocking rivets ha na'fanhuyong puente siha ni' konduktibu gi i kanton i lamination, ya ha na'fanhuyong i seriosu na interlaminar short circuits yan i eddy current spikes gi i takhilo' na frekuensiha (>400 Hz). I teknolohian backlack ha usa i B-stage epoxy bonding ni' siña ha na'homlo' sin i estres mekaniku. Este ha na'siguru na taya' interlamination shorts, ha na'menos i core loss gi 12% ki i welded stacks, yan ha na'guaha takhilo' na shear strength (>20 MPa).
Taimanu na i Youyou Company ha na'fanhuyong i aire gi i segment joint interfaces?
I aire ni' parasitåt gi i segment joints ha na'dokko' i magnetic reluctance yan ha na'menos i torque i motor. I kompanihan Youyou ha u'usa i sub-micron na presision na åmot carbide para u na'kontrola i toleransian i wedge gi halom ±0.005 mm yan i micro-burr na takhilo' gi papa' 5 microns. Este ha na'siguru na ti u ma'a'atan i lina'la'-ñiha gi i lina'la'-ñiha ≤ 0.008 mm, ya ti malago' i parasitu siha.
Håfa na klasin silicon steel yan gauges ma rekomenda para i high-rpm segmented stators?

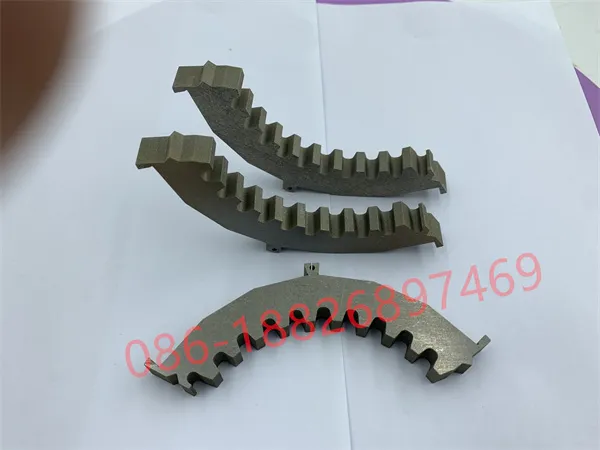

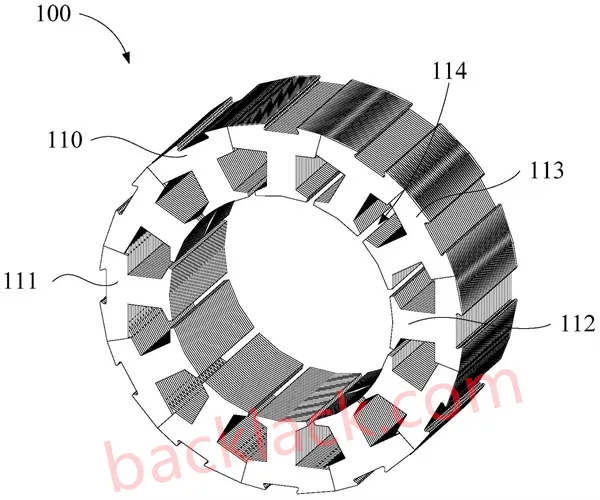

Para i ultra-high frequency yan high-rpm na motor siha, in na'setbe i ultrathin non-oriented silicon steel laminations ni' 0.10 mm asta 0.20 mm, yan lokkue' i grain-oriented na grados yan i high-performance Cobalt-Iron (CoFe) alloys (put hemplo, Vacodur 49 / 1J22). I manma'gåsgas na gauges ma na'menos i high-frequency hysteresis yan i eddy current na pineddong gi i compact electric propulsion yan medical robotics motors.
Hafa na inayuda i Youyou Company para i fina'tinas i prototype kontra i mas na pruduksion?
Manmana'i ham DFM na inayuda para i OEMs gi enteru mundo. Para i rápido na R&D na prutotipu, in na'i i taotao siha ni' wire-EDM pat laser-cut na Backlack segment gi 7–10 dihas na cho'cho'. Para i pruduksion serial, i high-speed progressive stamping presses-ta (100T–300T) ma na'i meggai na miyon na diente ni' ma pega kada sakkan gi papa' i estriktu na IATF 16949 na kualidåt na prutokkol siha.
Listo para u na'suha i piniti gi i nuebu na frekuensiha yan Kao siña un na'suha i chinatsaga gi i motor elektrisidåt?
Tumutuhon i Stator-mu ni' Segmented & Prohekton Backlack På'go na Ha'åni
I konbensionåt na un-pidason ring stators manma'a'ñao nu i lina'la'-ñiha—ma'a'ñao i slot fill factors asta ~60%, ma na'fanlamen i copper (I2R), yan ma na'fanlamen asta 50% gi i gaston elektrisidåt. Un li'e' un manma'gås-ta ni' siña ma'usa para u ma'usa i ultrathin silicon steel (0.10mm–0.20mm) yan i high-performance alloys yan i Backlack self-bonding na teknolohiha? I kompanihan Youyou ha na'i solusion siha ni' siña ma'usa para u ma'usa i elektrisidåt, i motor siha ni' manma'usa gi i drone, i robotics mediku, yan i actuators gi i aire. Gi i ma'integra i sub-micron carbide stamping, i direct tooth winding optimization, yan i stress-free Backlack thermal curing, ma na'suha i interlaminar short circuits, ma na'dokko' i slot fill factors asta 82%, yan ma na'kahulo' i utilidat materiåt asta 90%, ya ma na'daña' i gap ginen i rapid engineering prototyping asta i automated production series.
Fanå'gue i gurupon inetnon-måmi på'go para un faisen Backlack self-bonding lamination samples, na'i rápido na inadelanta gi i prototypes (7–10 dihas), pat risibi un libre na Segmented Stator DFM Feasibility Evaluation para i 3D CAD na mudelu yan dibuho-mu!
